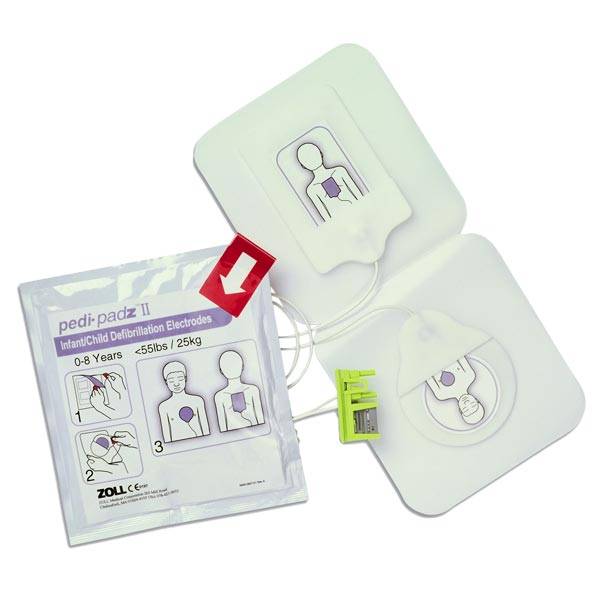

The ZOLL AED Plus Pedi-Padz II offers an advanced solution specifically tailored for young patients in urgent situations. Engineered for children under the age of 8 or weighing less than 25 kg (55 pounds), these paediatric electrodes are integral to the ZOLL AED Plus defibrillator’s capability to adapt seamlessly from adult to paediatric settings.
Upon attachment, the device automatically switches to a paediatric ECG analysis algorithm, ensuring appropriate care during the critical moments of a sudden cardiac arrest in children.
Find more defibrillators and accessories for use by anyone, even those without training.
Demystify workplace first aid & find out exactly what your business needs.
Demystify workplace first aid & find out exactly what your business needs.
The ZOLL AED Plus Pedi-Padz II are critical lifesaving tools designed specifically for emergencies involving sudden cardiac arrest in children and infants. Suitable for children aged under 8 years old, these paediatric electrodes are essential for use in situations where defibrillation is necessary.
When connected to the ZOLL AED Plus or ZOLL Pro defibrillators, the Pedi-Padz II automatically adjusts to child-safe energy levels. They deliver defibrillation shocks tailored to the unique requirements of young patients, significantly enhancing the chances of survival in these critical situations.
The ZOLL AED Plus Pedi-Padz are designed for pediatric use and have a shelf life of 24 months. This two-year lifespan ensures that the electrodes remain effective for use on younger patients. The pads are specifically engineered to maintain their integrity and functionality during this period. After 24 months, the Pedi-Padz should be replaced.
AEDs, especially those in low-usage environments like workplaces, public spaces, or community centres, may go years without being deployed. However, electrode pads naturally degrade over time. If not replaced before their expiration date, there is a risk the AED will fail during an emergency due to corroded or expired pads. The two-year shelf life of the ZOLL Pedi-Padz II ensures that replacement is needed less frequently, reducing costs and simplifying maintenance.
By replacing the pads regularly and ensuring they’re not expired, you ensure your ZOLL AED Plus is always ready for immediate use, which can make a critical difference during a cardiac emergency.
The urgency of a cardiac emergency, particularly with children, cannot be overstated. The ZOLL Pedi-Padz II are essential in providing rapid and effective response in such critical moments. Ideally, these paediatric electrodes should be readily accessible wherever there is potential for such emergencies, ensuring that every second counts:
The urgency of a cardiac emergency, particularly with children, cannot be overstated. The ZOLL Pedi-Padz II are essential in providing rapid and effective response in such critical moments. Ideally, these paediatric electrodes should be readily accessible wherever there is potential for such emergencies, ensuring that every second counts:
Browse our catalogue of Advanced Life Support Products complete with end-user prices.
The AED will provide visual and auditory prompts to guide you through the rescue process. A red light will indicate the current step you should be on. To effectively use the ZOLL AED Plus in an emergency, follow these steps carefully:
As soon as you reach the casualty, open the lid of the ZOLL AED Plus and switch it on.
Check if the patient is responsive.
Call for emergency help.
Open the patient's airway.
Check for breathing.
Attach the pads to the patient's body and make sure clothing on the top hald is removed. Follow the diagrams on the pads to place them in the correct place. If the patient is an adult (above 8 years old), you will need to use CPR-D Padz
Stand clear while the device analyses the heart.
If shock is advised, press flashing Shock button.
If no shock is advised or after shock delivery, begin CPR when prompted. Follow the Real CPR Help prompts for proper compression quality during CPR. Keep following the AED's instructions until professional medical help arrives. The device will continue to guide you through the necessary steps.
![]() | We deliver from the UK, to 57 countriesExport accounts for more than 25% of turnover and continues to grow year-on-year. |
Export accounts for more than 25% of turnover and continues to grow year-on-year, demonstrating our company’s competitive edge and consistent product quality.
Specification | Details |
Shelf Life | 24 months |
Conductive Gel | Hydrogel |
Conductive Element | Tin |
Packaging | Paper/ Polyfoil Laminate |
Impedance Class | Low |
Cable Length | 34 in (86.4cm) |
Sternum Pad | Length: 5.43 in (13.8 cm); Width: 3.5 in (8.9 cm) Length, conductive gel: 3.58 in (9.1 cm) Width, conductive gel: 2.18 in (5.5 cm) Area, conductive gel: 7.81 sq in (50.3 sq cm) |
Apex Pad | Length: 3.7 in (9.4 cm); Width: 3.7 in (9.4 cm) Length, conductive gel: 2.85 in (7.24 cm) Width, conductive gel: 2.85 in (7.24 cm) Area, conductive gel: 6.37 sq in (41.1 sq cm) |
Complete Assembly | Folded length: 5.43 in (13.8 cm) Folded width: 3.5 in (8.9 cm) Folded height: 1.5 in (3.8 cm) |
Design Standards | Meets applicable requirements of ANSI/AAMI/ISO DF-39-1993 |
ZOLL® Medical Corporation has been a leader in resuscitation technology for over 25 years, developing advanced automated external defibrillators (AEDs) used worldwide. With more than 1.5 million units globally, ZOLL AEDs are renowned for their reliability and smart features, including real-time, guideline-driven feedback that guides rescuers through the process of performing high-quality CPR. This technology is crucial for enhancing survival rates, as high-quality CPR is essential whether or not a shock is advised. ZOLL's AEDs are designed to be intuitive, helping bystanders to act quickly and effectively in sudden cardiac arrest emergencies, thus supporting the mission to equip public spaces with life-saving technology.
Find out about your legal responsibilities and browse our selection of AEDs and accessories.
Browse our knowledge hub for free guides, resources, and articles to find out about defibrillators.
Learn how Steroplast is supporting 24/7 public access defibrillators at Old Trafford, bridging the care gap and prioritising fan safety.
The ZOLL AED Plus Pedi-Padz II are designed for children aged under 8 years old or weighing less than 25 kg.
When connected to a ZOLL AED Plus or ZOLL AED Pro, the Pedi-Padz II automatically detect attachment and switch the defibrillator to paediatric-specific settings.
Replace expired Pedi-Padz II immediately to ensure that the AED remains ready for use in an emergency.
No, they are specifically designed for use with the ZOLL AED Plus Semi Automatic and ZOLL AED Pro defibrillators.
The ZOLL AED Plus Pedi-Padz II have a shelf life of 24 months from the date of manufacture.
Store the Pedi-Padz II in a cool, dry place and ensure they are readily accessible in case of an emergency, ideally with your ZOLL Plus and Pro AED.
Use the Pedi-Padz II for paediatric emergencies involving children under 8 years old or under 25 kg. The AED will guide you with voice and visual prompts once they are connected.
Yes, anatomical diagrams on the packaging provide guidance for correct placement on the front and back of a child’s torso.
The ZOLL AED Plus and AED Pro automatically adjust the energy level to a paediatric-appropriate setting without the need for manual intervention.
Regularly check the expiry date, and ensure the package remains sealed and undamaged. Test your AED unit regularly according to the manufacturer’s guidelines.
